Description
Saxby Lighting Selectable LED Driver | 25W-40W Constant Current

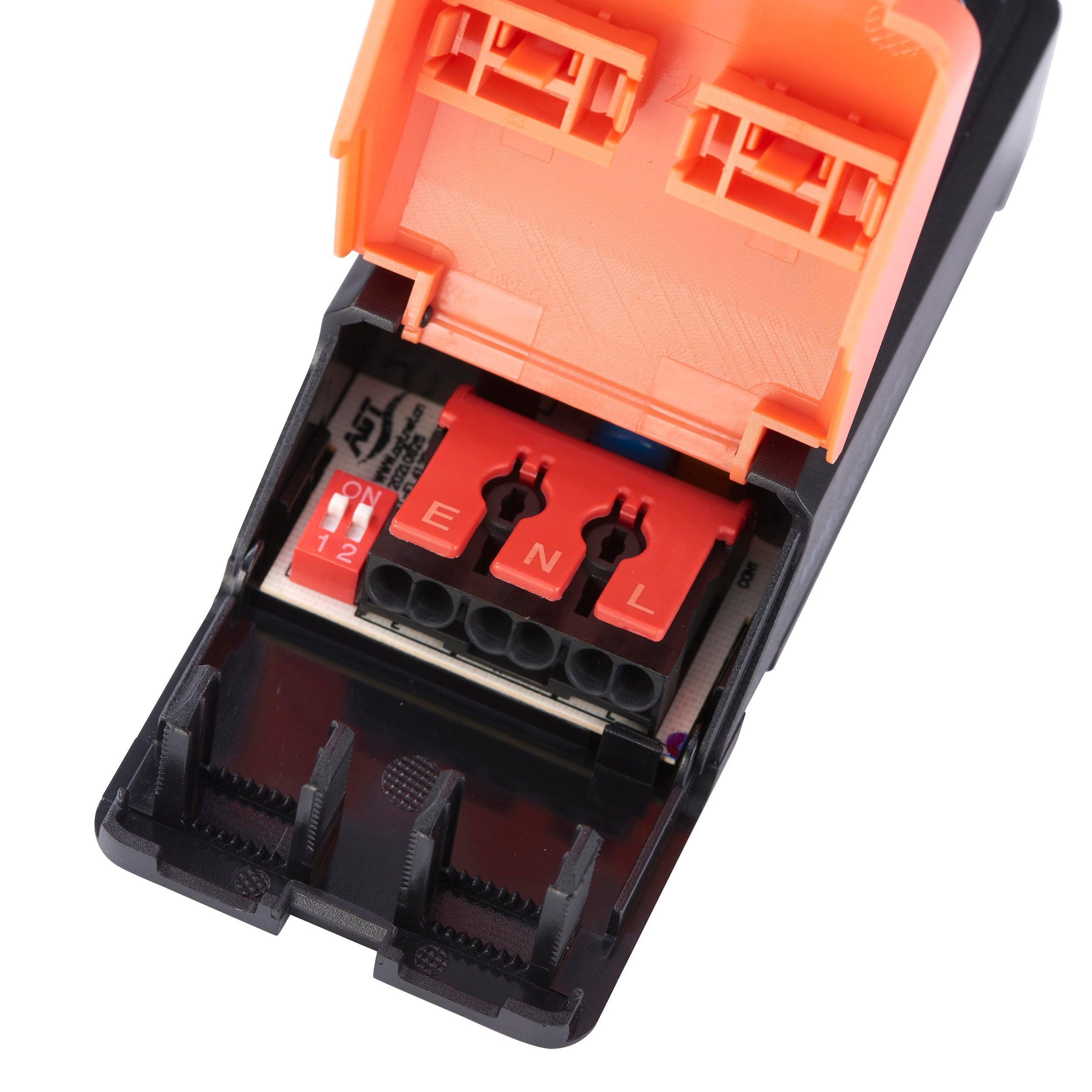

This Saxby Lighting constant current LED driver (model 92544) offers exceptional versatility for modern lighting installations. Designed with a robust polycarbonate casing finished in a striking black and orange colourway, this compact unit is engineered for reliability and ease of use. It features advanced ripple-free technology, ensuring a steady and flicker-free light output for compatible LED systems, which is essential for visual comfort in both commercial and residential settings. The driver is highly adaptable, allowing users to select between 25W, 30W, 35W, or 40W outputs using the integrated DIP switches located under the protective terminal cover. These switches also enable precise adjustment of the output current from 600mA to 1000mA, catering to the specific technical requirements of various LED modules. As a Class 2 double-insulated device with a SELV (Safety Extra Low Voltage) rating, it provides a high level of electrical safety within a space-saving design. This non-dimmable driver is rated IP20, making it an ideal choice for professional-grade internal power supply applications.
Key Features
- Selectable wattage outputs of 25W, 30W, 35W, or 40W for maximum flexibility.

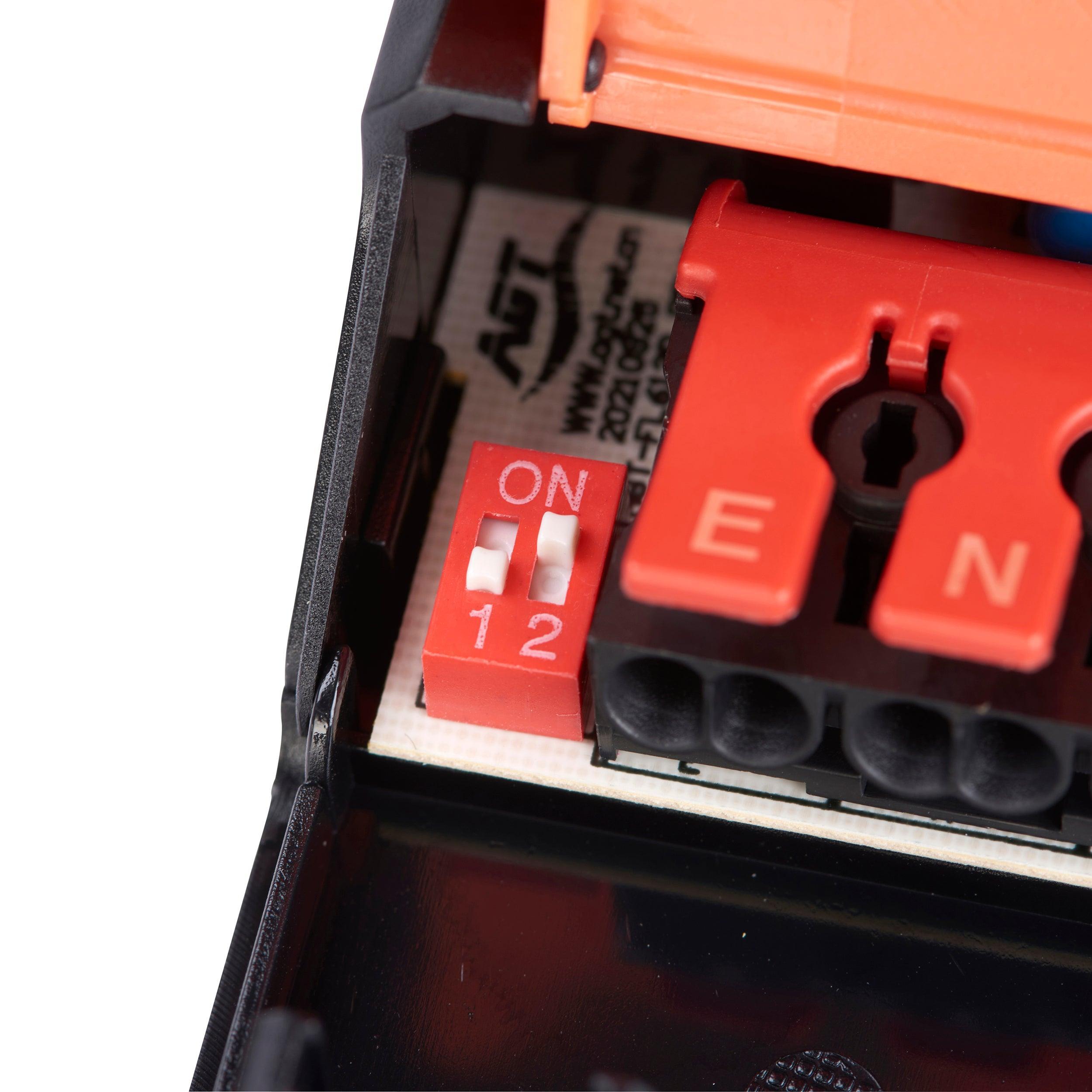

- Integrated DIP switches for adjustable output current between 600mA and 1000mA.
- Advanced ripple-free technology provides a stable, flicker-free illumination.
- Safety assured with Class 2 double insulation and a SELV rating.
- Compact and durable polycarbonate construction in a professional black and orange finish.
Perfect For
This selectable LED driver is ideal for powering a variety of LED strip lights and commercial lighting fittings in retail, office, and hospitality environments. It is perfectly suited for professional electrical installations where precise current adjustment is required for specific LED components. Its compact height also makes it an excellent choice for modern residential setups where space within ceiling voids or cabinetry is limited.
| Height | 2.8cm/1.1" |
| Width | 5.05cm/2" |
| Length | 12.1cm/4.8" |
| Light Bulbs | N/A |
| Fitting Code | 92544 |
| Brand | Saxby Lighting |
| Dimmable | No |
| Class | Class 2 - Double Insulated |
| Weight | 0.1KG |
| Guarantee | Up to 5 Years |
| Adjustable | No |
